Oracle Linux 7.9 Installation On Virtual Box

Oracle Linux 7.9 Installation On Virtual Box

In the previous section of this blog series, we explored the installation process of Oracle Virtual Box on a Windows operating system.

Now, we will shift our focus towards preparing a virtual machine for the installation of Oracle Linux.

To accomplish this, we will follow a set of steps to adequately configure the virtual machine. These steps can be utilized to create any virtual machine, with the exception of allocating the appropriate amount of RAM and hard disk space based on specific requirements.

In this case, as we are installing Oracle Apps R12.2.12, we have adjusted the resources such as RAM and hard disk space accordingly to ensure optimal performance during the installation process.

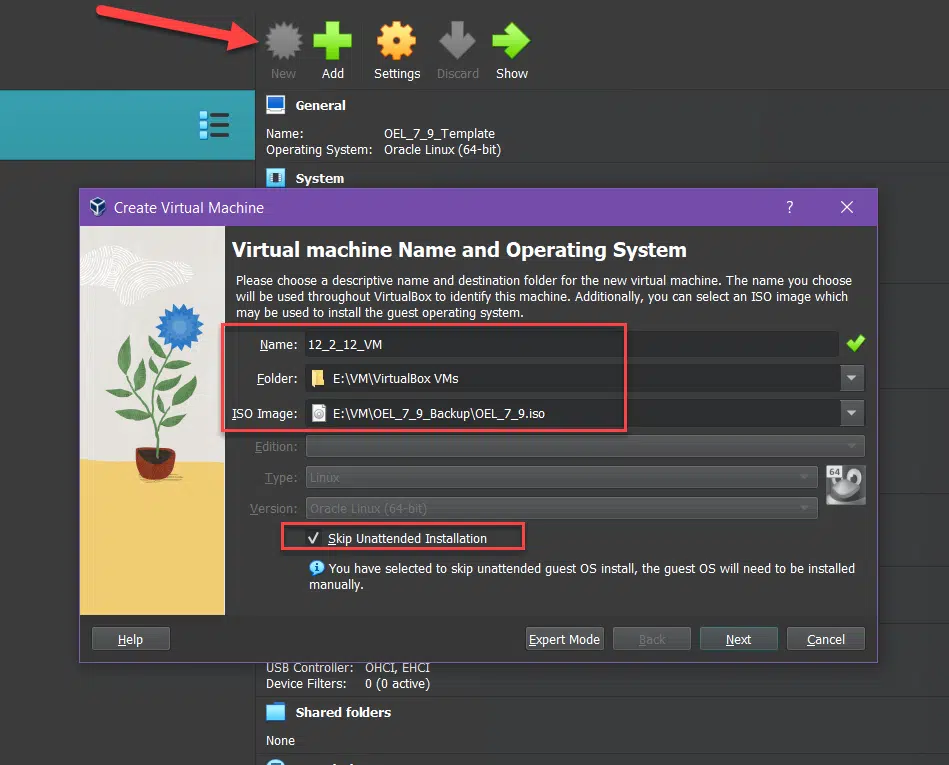

Open Virtual Box And Click New ICON. It will open a Pop Up Box on which Enter the Details of the Following

  • Name: {Name of the Desired VM}
  • Folder: {Folder location where you need to Create the VM]
  • ISO Image: {ISO File of OEL 7.9}
  • Also, Click the Check Box of “Skip Unattended Installation”

Now Click NEXT

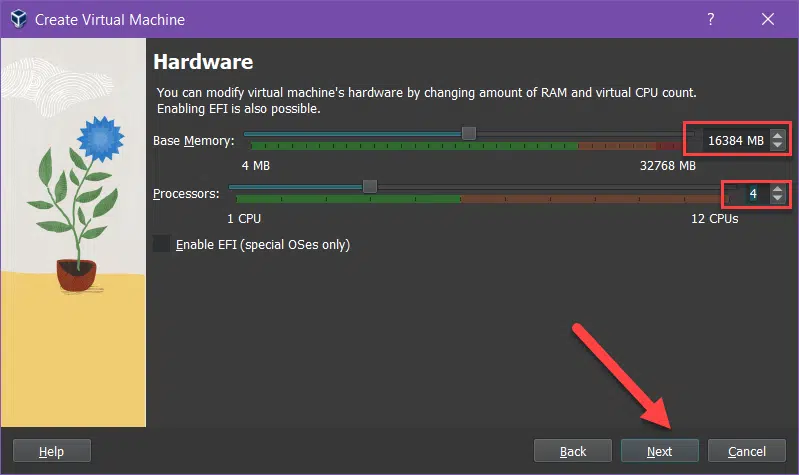

Now Enter the Following Details:

  • Base Memory: {16GB} (As I have Mentioned Before I will configure it on 16gb which is Recommended)
  • Processors: {4}

Now Click Next

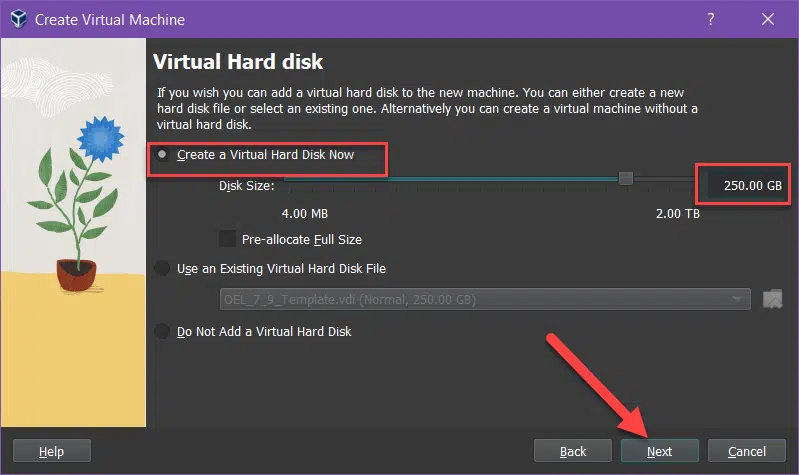

Now in this Step, we will Create a Virtual Hard Disk. As mentioned Before I will be allocating 250 GB size to this disk for Operating System and Staging Area.

Note: If you have a Limitation of Space you can allocate 110 GB for this Hard Disk.

After this Click Next and Then Click Finish to Create a Virtual Machine for Further Configuration



As I have to Install Oracle Apps R12.2.12  in this Linux Virtual Machine, I will add an additional 300 GB Hard Disk for the Application File System and Database.

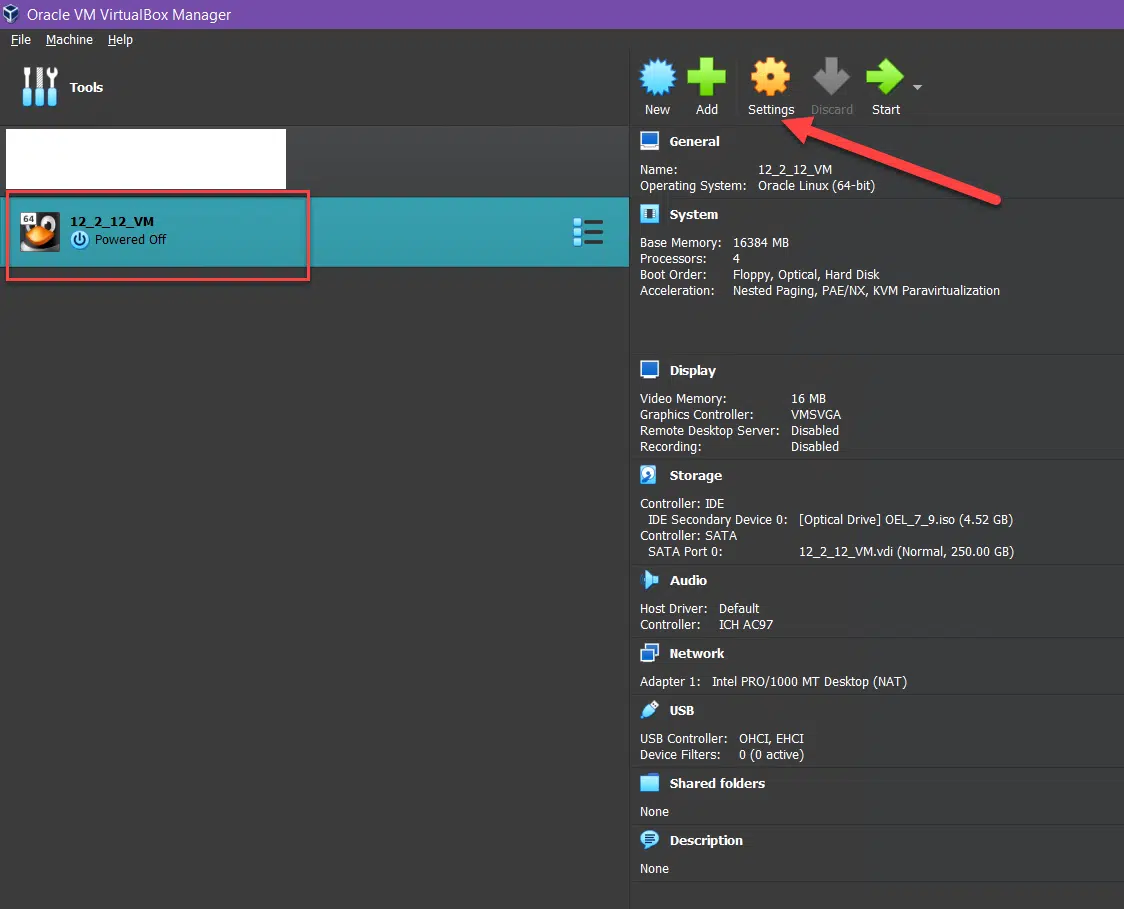

So for adding one more Hard Disk, we will go in the Settings of the created Virtual Machine by Clicking Settings of this Virtual  Machine.

Once The Settings Box opens, go to the Storage TAB and Click on

+ Hard Disk Button as shown in the Picture.

Now Click Create Button to Open a Virtual Hard Disk Creation Wizard

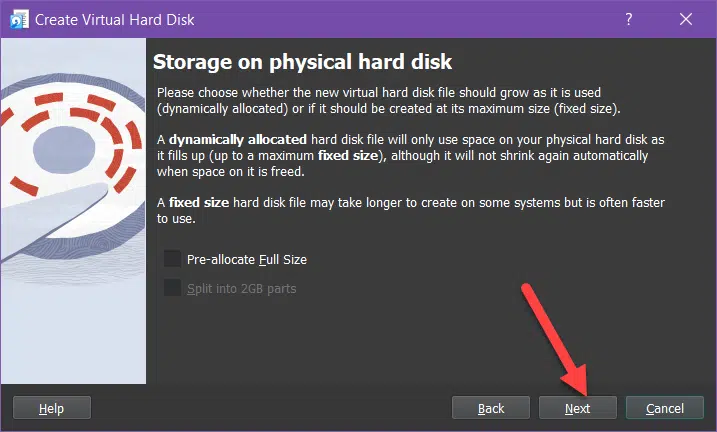

Click Next

Click Next

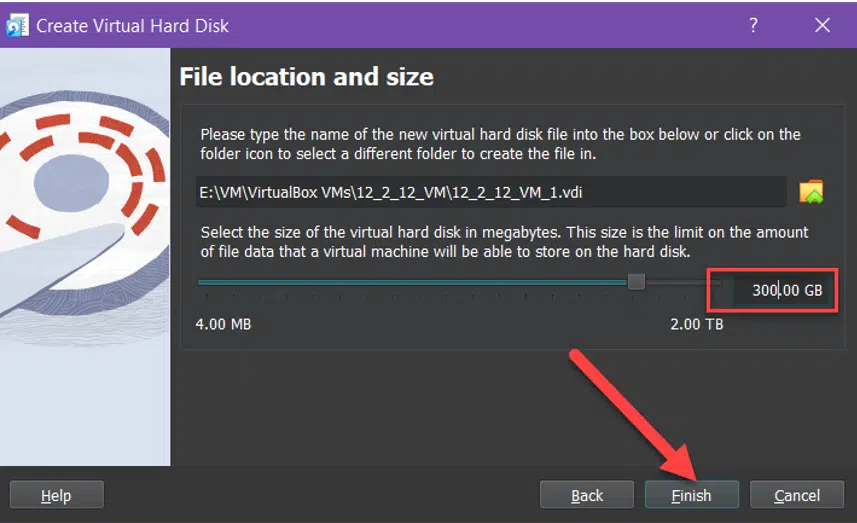

After Entering the Desired Value of the Hard Disk to Be Created, then Click Finish

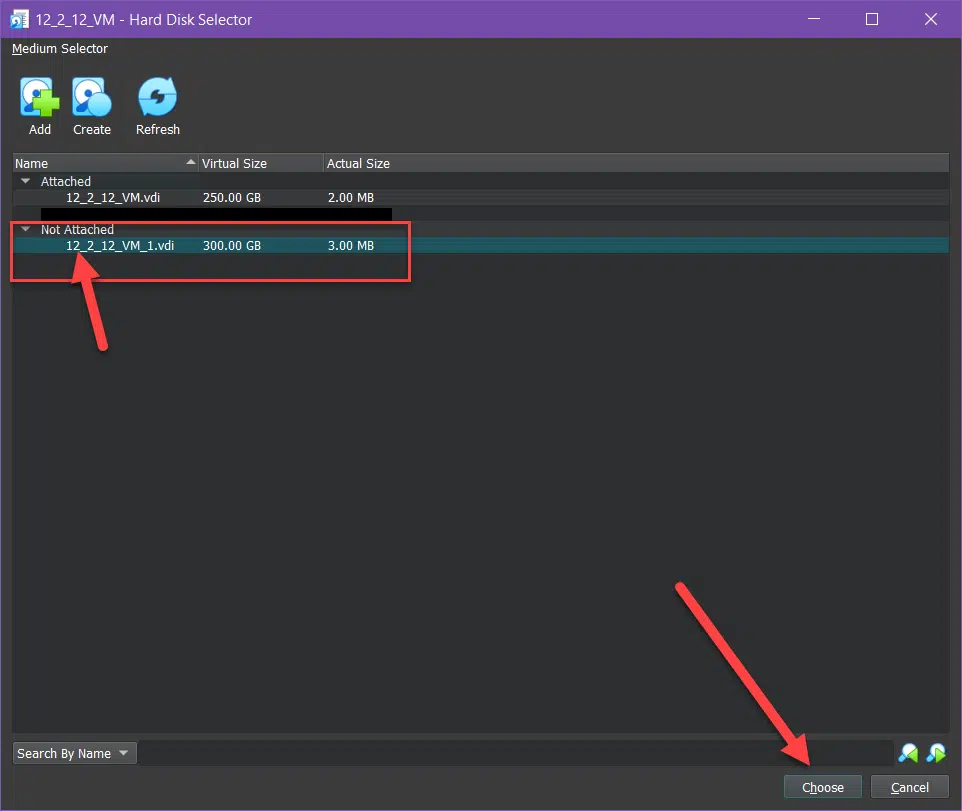

Now as You Can See the Drive that we created in Above Steps is in “Not Attached” Condition. Click This “Hard Disk”  and Click “Choose” as Shown In the Picture Below

As you can see we are Having 2 Hard Disks in this Virtual Machine that we Created. Click OK to Continue Further

Now Start the Newly Configure VM to Install the OEL 7.9

Now New Window Will Pop Up Running the Installer for OEL 7.9.

Click in this Window and select “Install Oracle  Linux 7.9” with arrow keys on the keyboard and Press ENTER.

Oracle Enterprise Linux 7.9 Installation Process

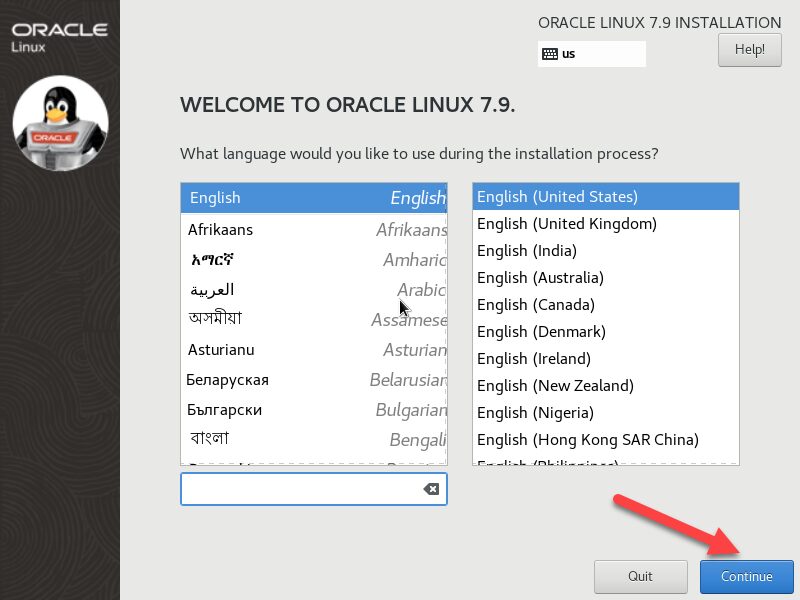

Click Continue

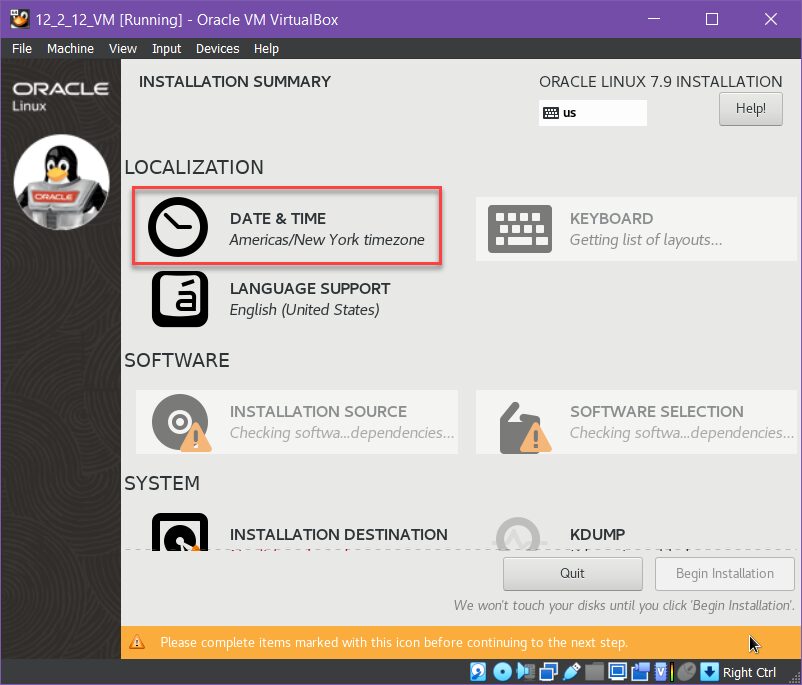

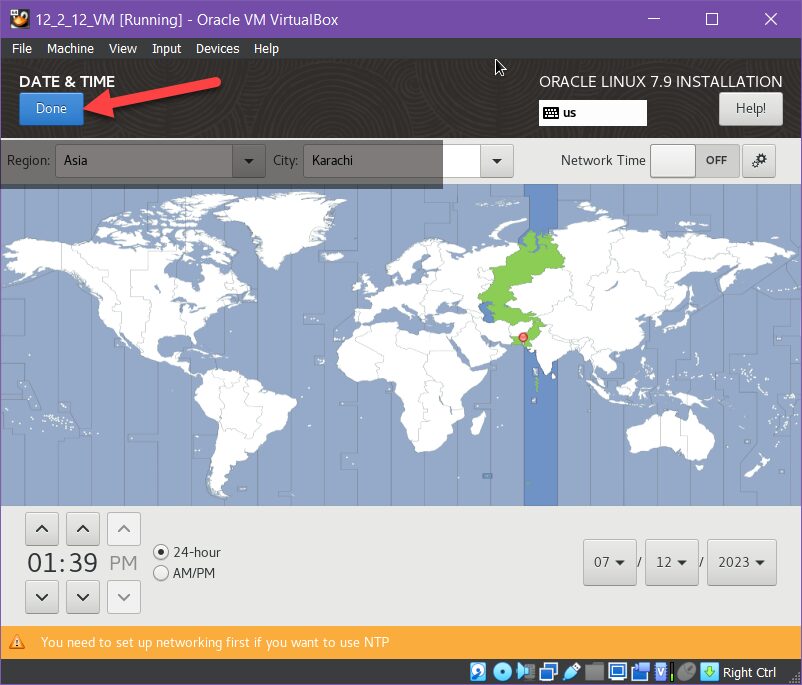

Click “DATE & TIME ” to configure Timezone

Click Done After Configuring Region Timezone

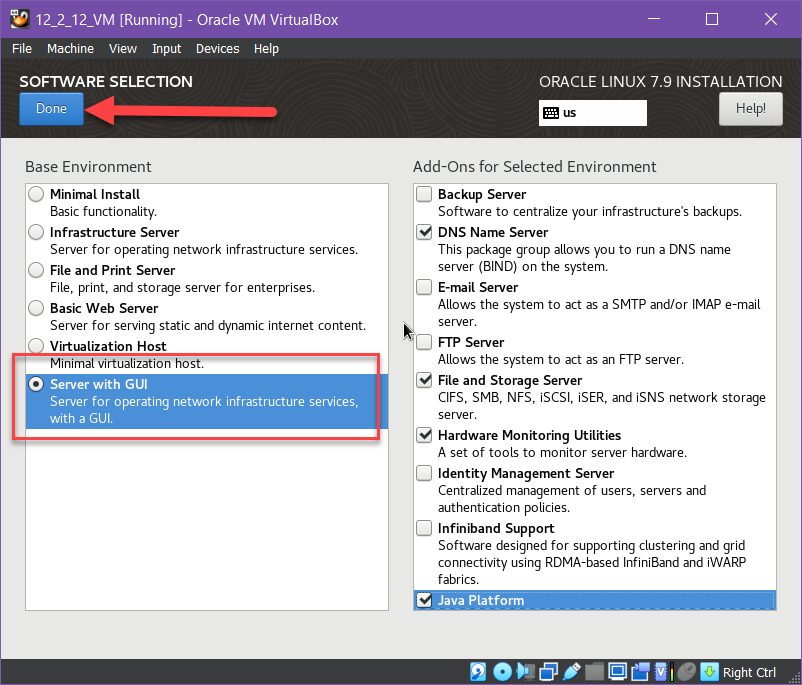

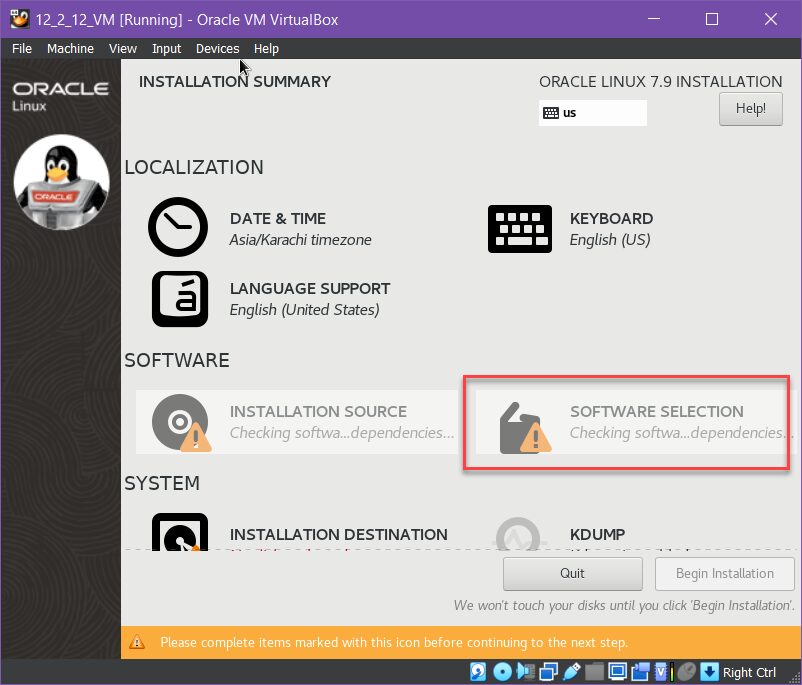

Now Click “SOFTWARE SELECTION”

Select the Following from the List

Base Environment

  • Server With GUI

Add-Ons For Selected Environment

  • DNS Name Server
  • FTP Server
  • File and Storage Server
  • Hardware Monitoring Utilities
  • Compatibility Libraries
  • Development Tools
  • System Administration Tools

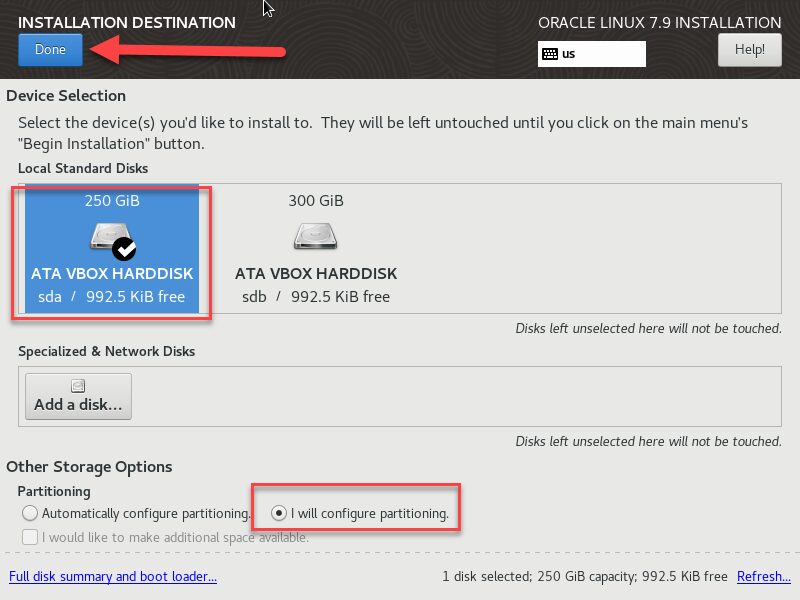

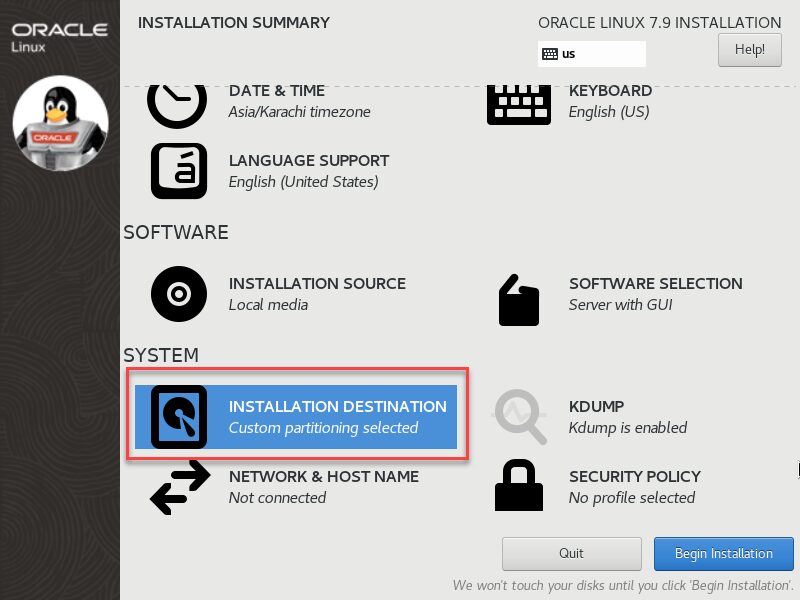

Now Click “INSTALLATION DESTINATION”

Select the following options in the picture and Click DONE to open Hard Disk Configuration

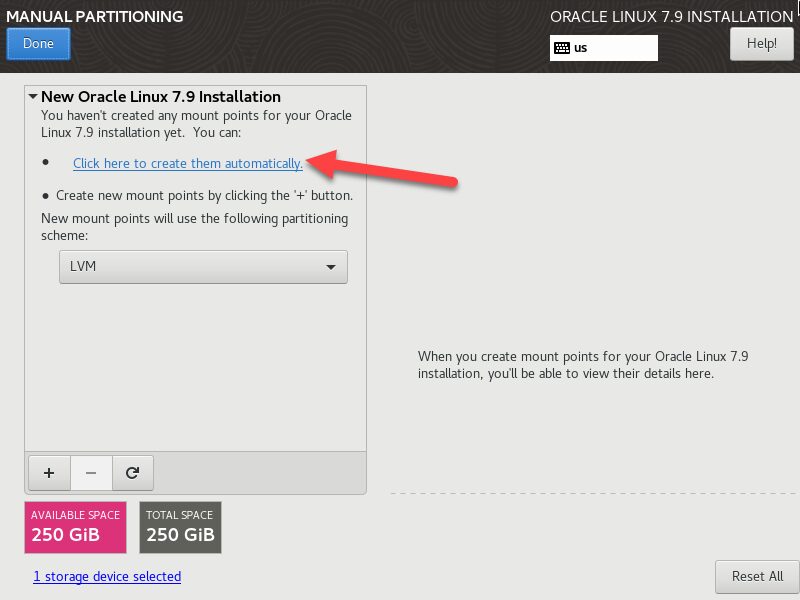

Click “Click here to create them automatically”

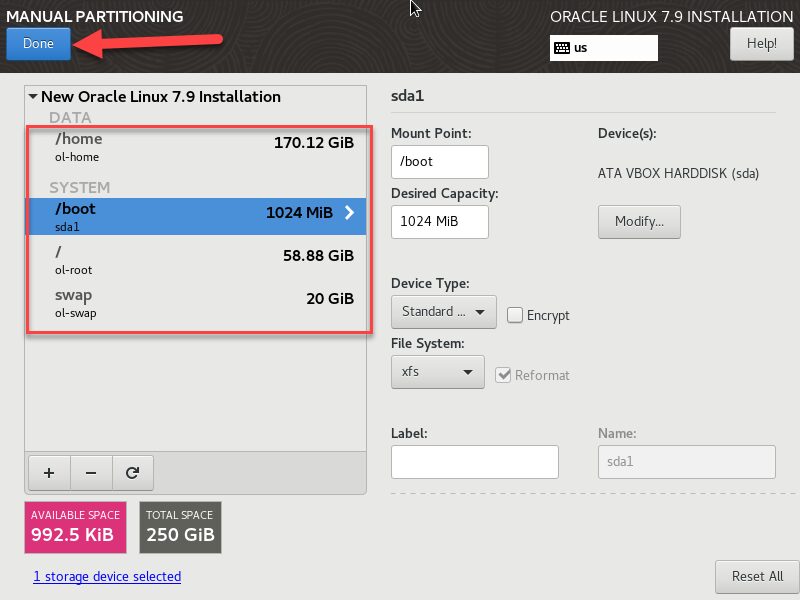

Alter the Size of the Partitions as per the picture given below  or according to your desired values and Click Done

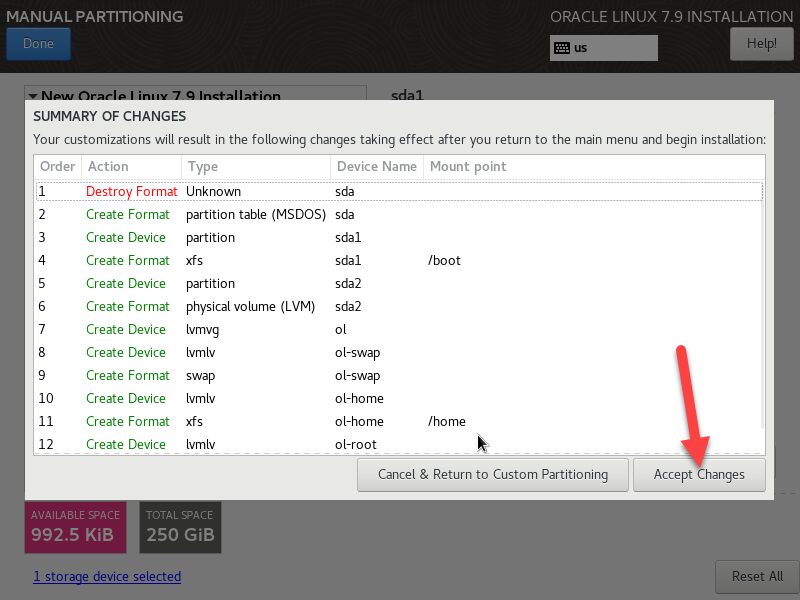

Click “Accept Changes” to Create the Partitions

Note: We will Configure the Other added Virtual Hard Disk After OS Installation

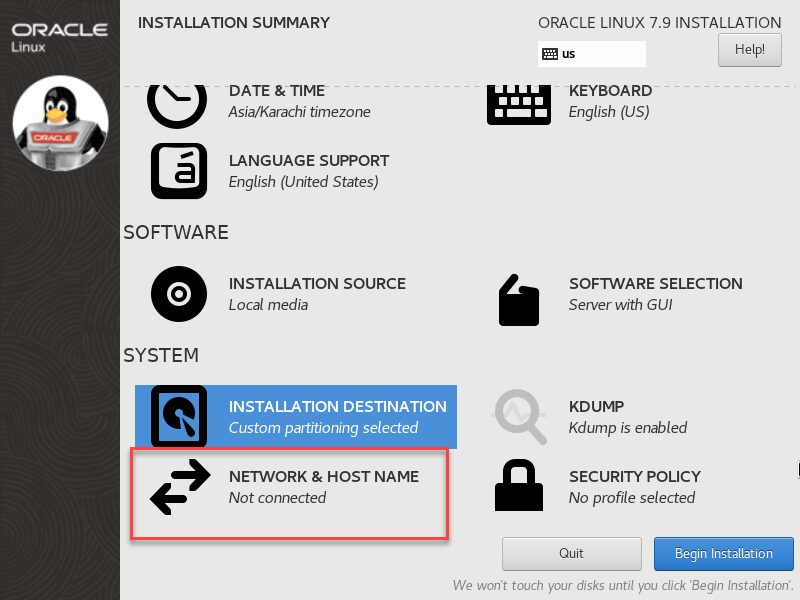

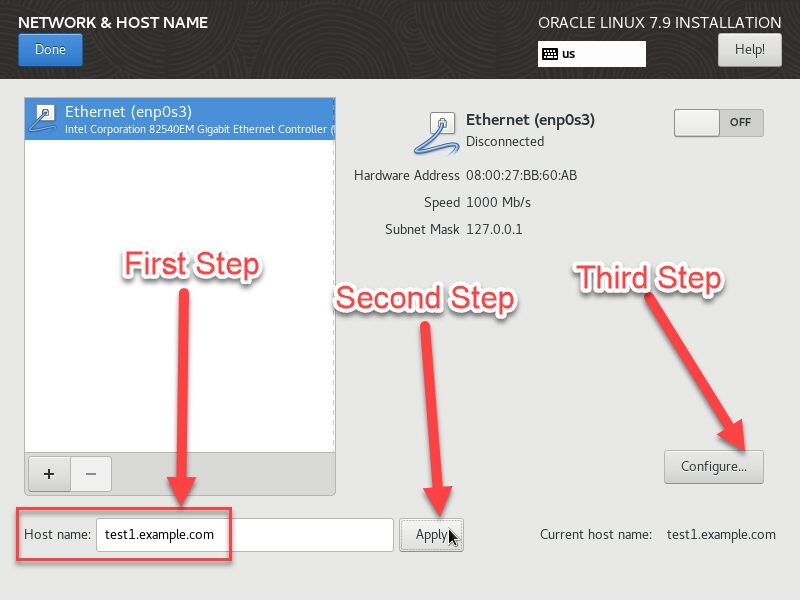

Click “NETWORK & HOST NAME” for the configuration of the Network

Enter the Required Info as given in the Picture and then Click Configure

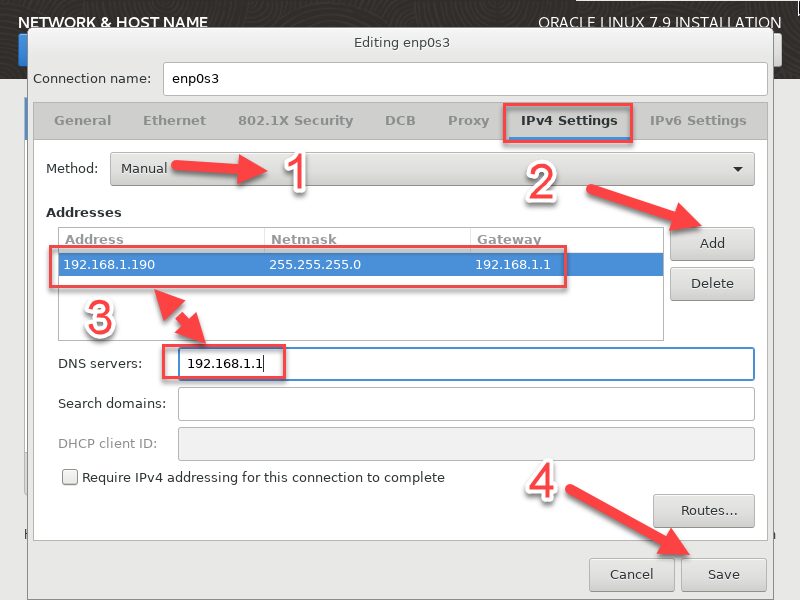

Go to IPv4 Settings Tab and then

1: Select Manual

2: Click Add to add IP address Details

3: Add IP Address and DNS Details for Internet Connectivity.

4. Click Save

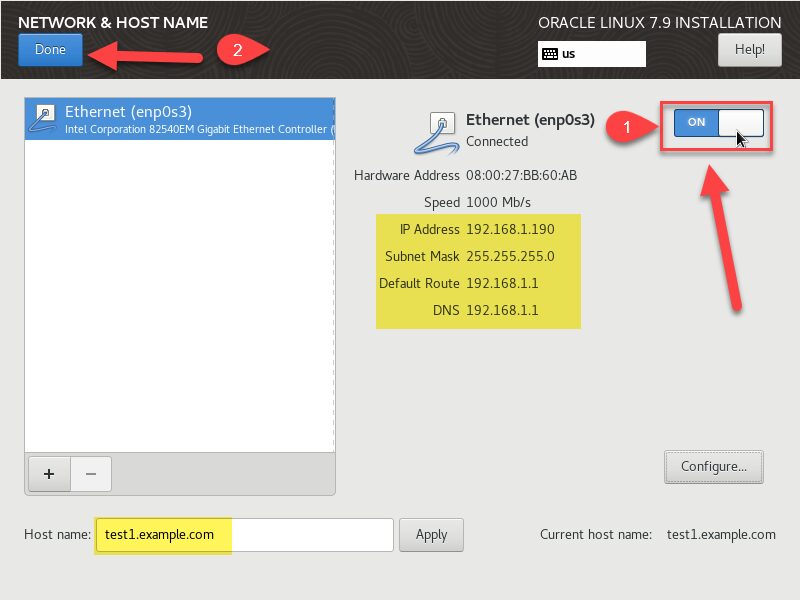

Click Ethernet to ON and Click Done

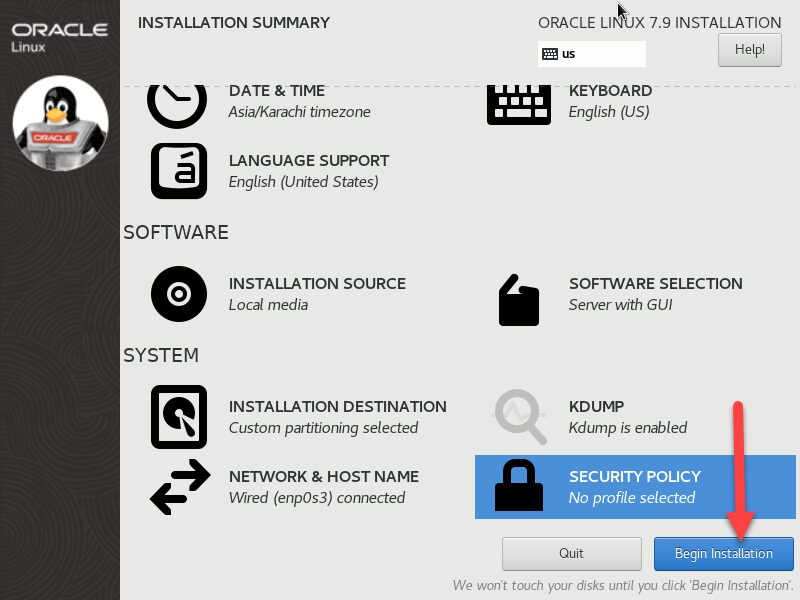

Now Click “Begin Installation” for starting the Installation Process

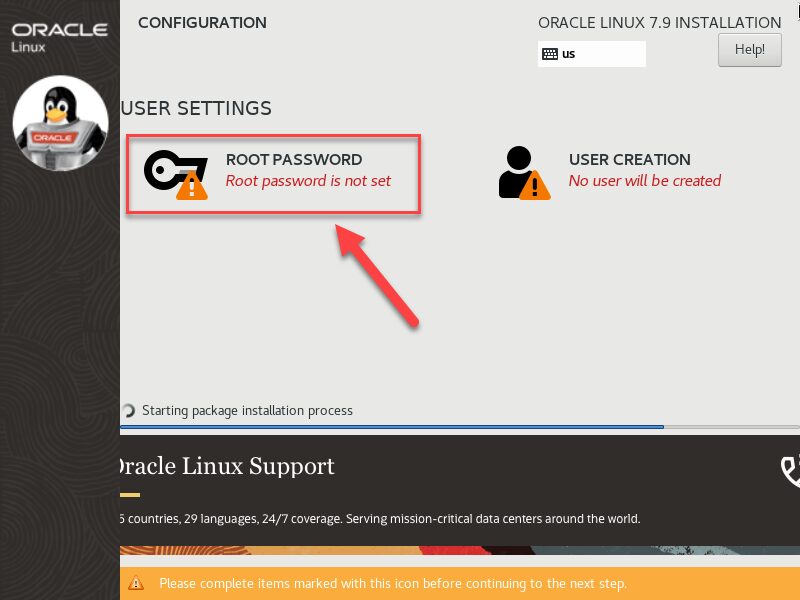

Installation Process Start, click Root Password to Set Password of ROOT User

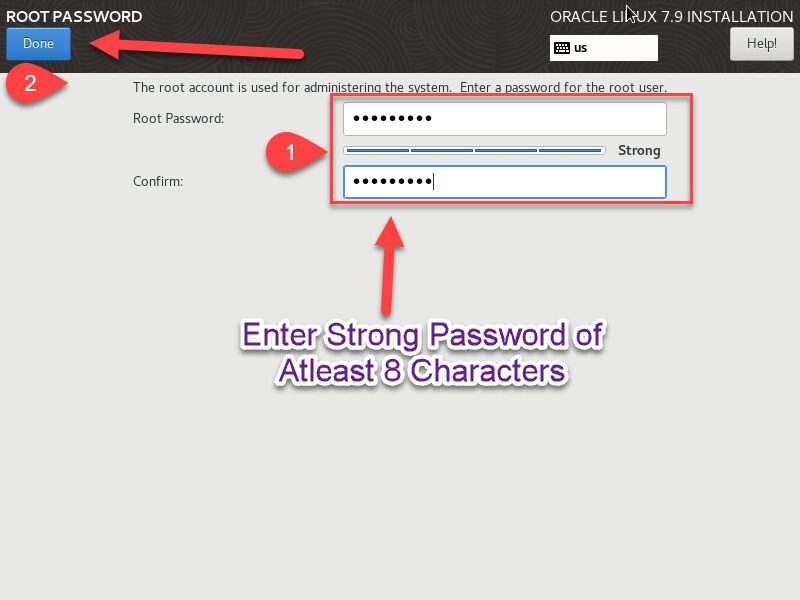

Enter the Password for ROOT User and Click Done

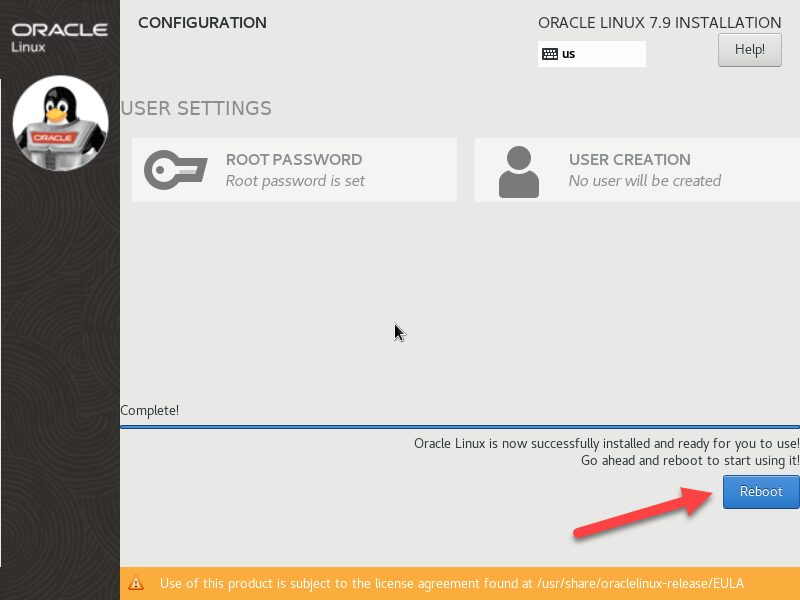

Click the Reboot Button Once the Installation Completes

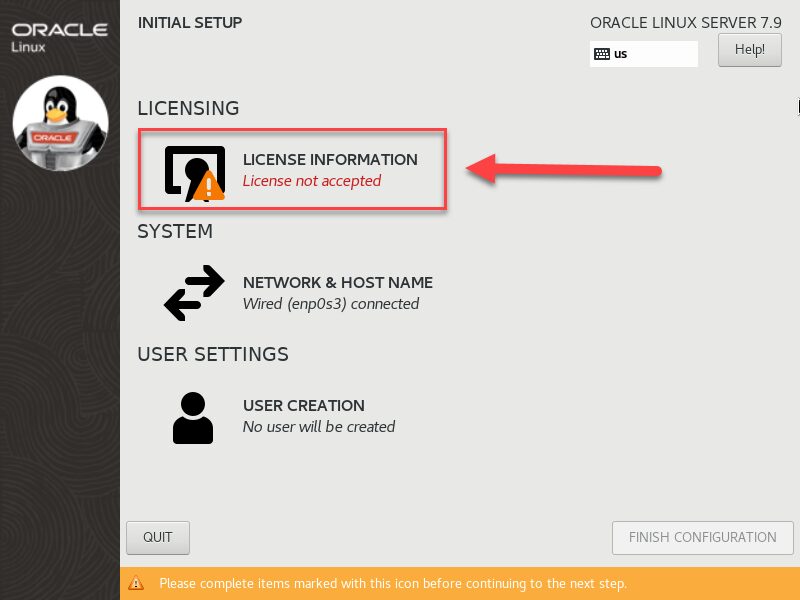

After Reboot, Click “LICENSE INFORMATION”

Accept the License and Click Done

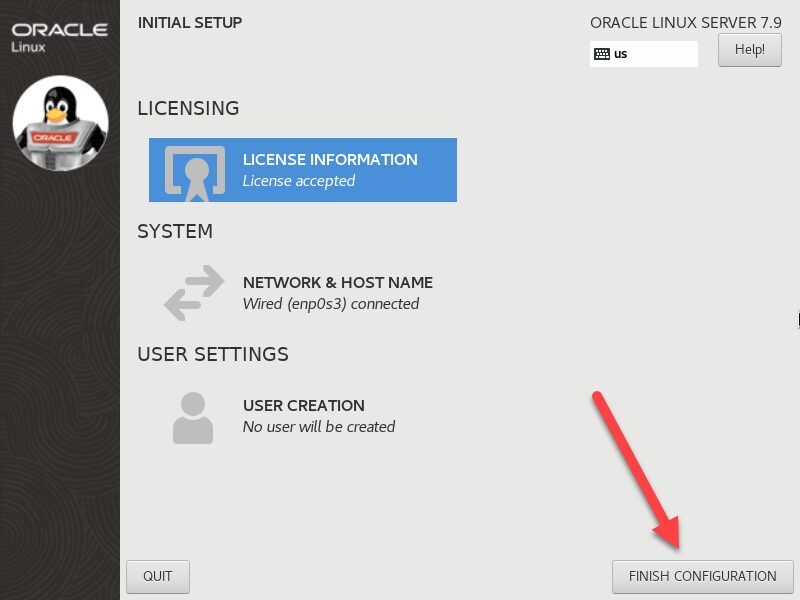

Click “FINISH CONFIGURATION”

Click Next

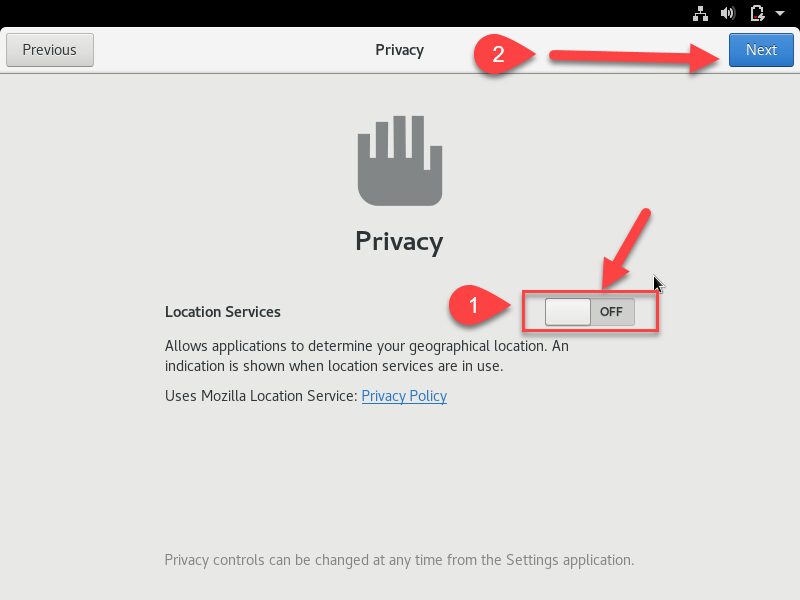

Click Next after Disabling the Location Services

Click Skip

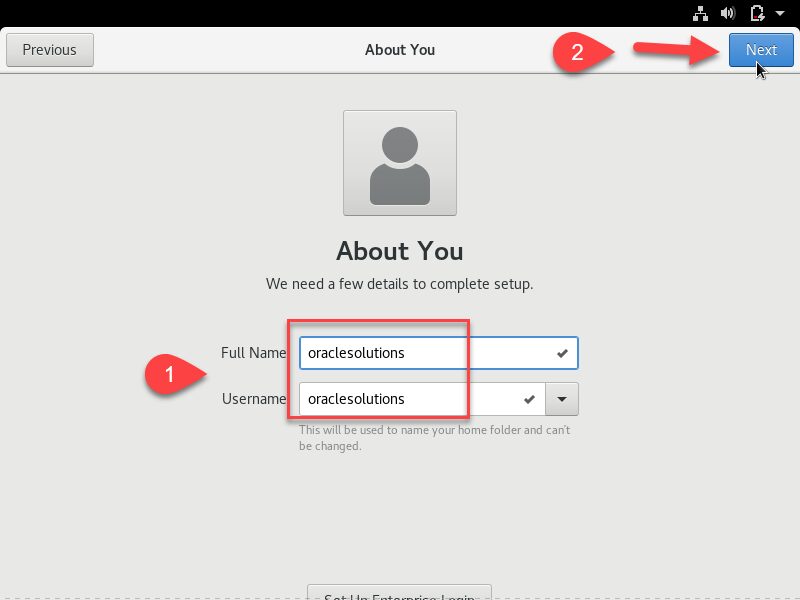

Click Next After Entering The Following Information in the Picture. This will Create an Account Other than ROOT User.

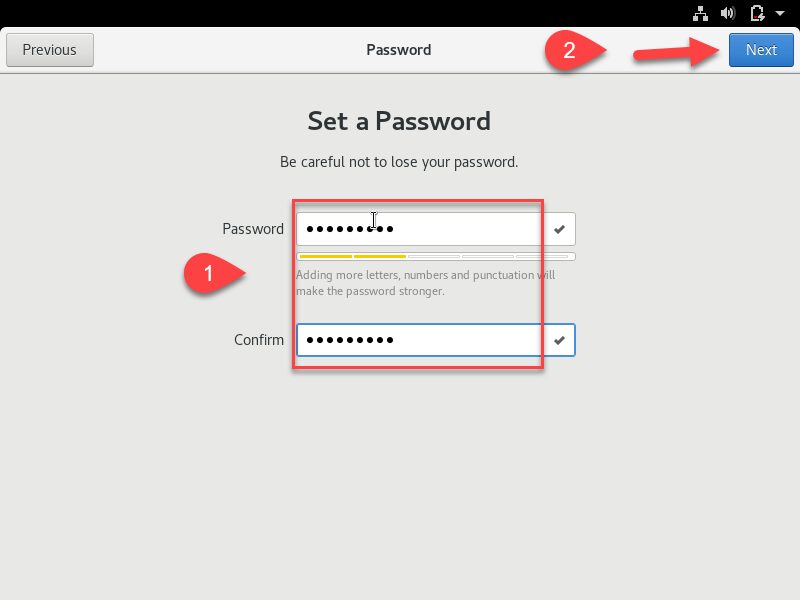

Set Password for the User and Click Next

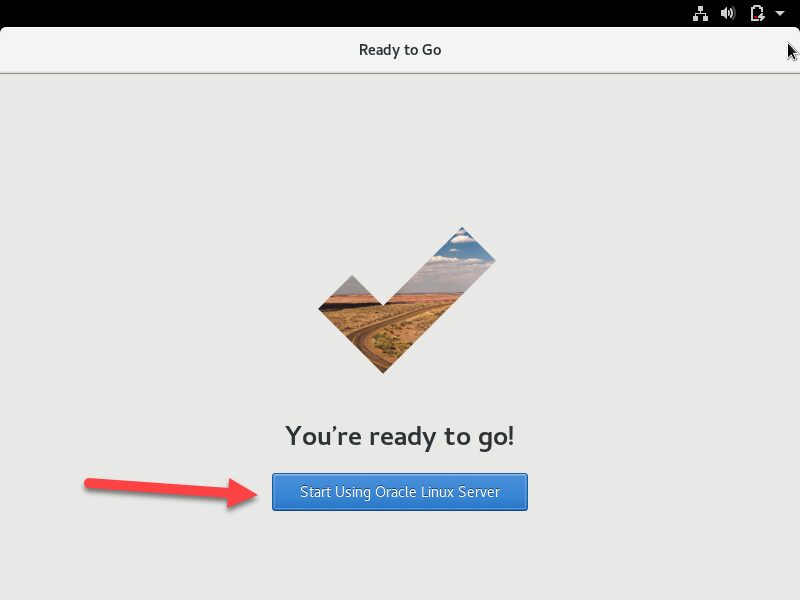

Click “Start Using Oracle Linux Server”

Oracle Virtual Box Guest Addition RPM Installation Process

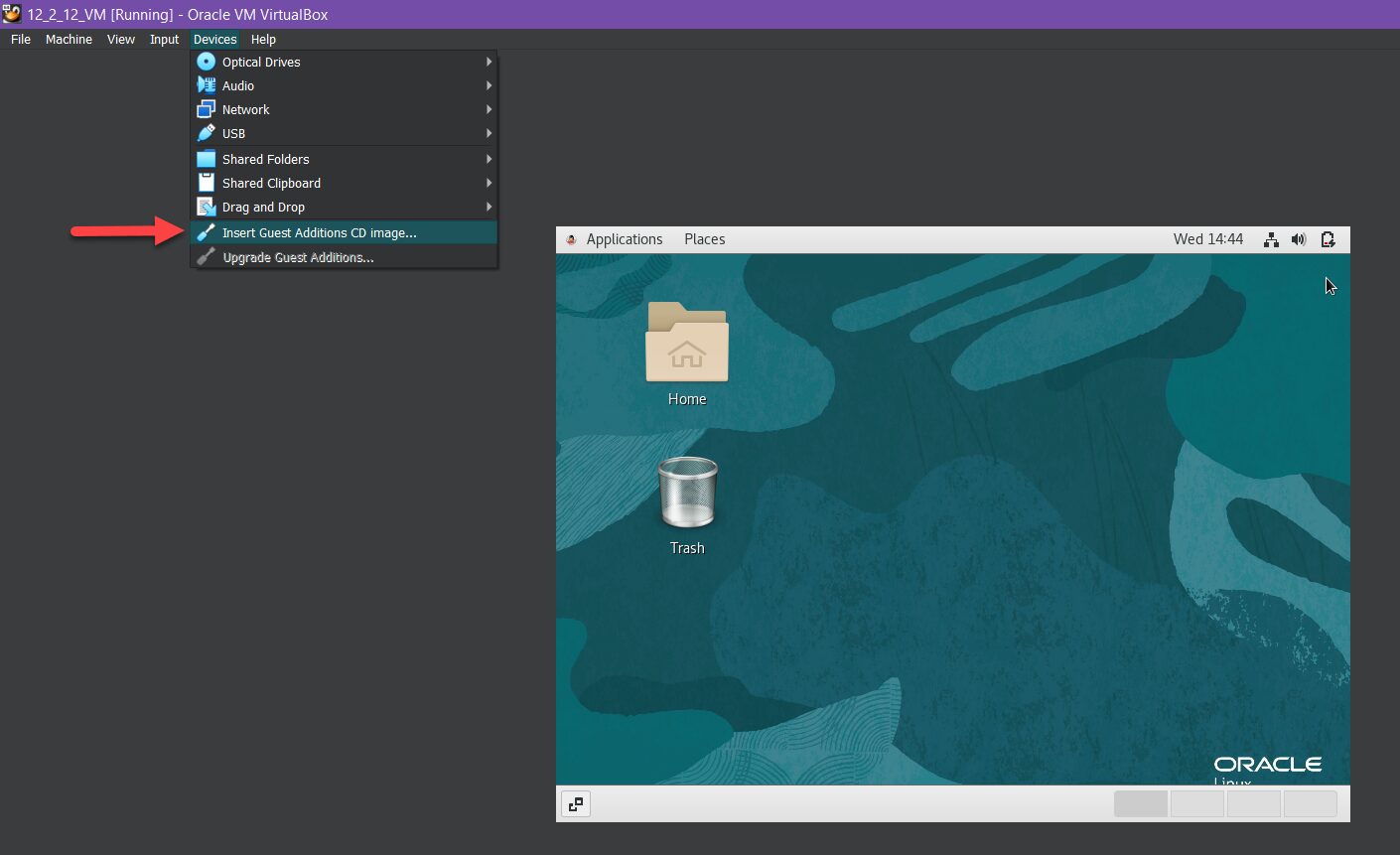

Now We will Install the Virtual Box Guest Addition RPM. For This Insert the Guest Additions CD Image as shown in the Picture

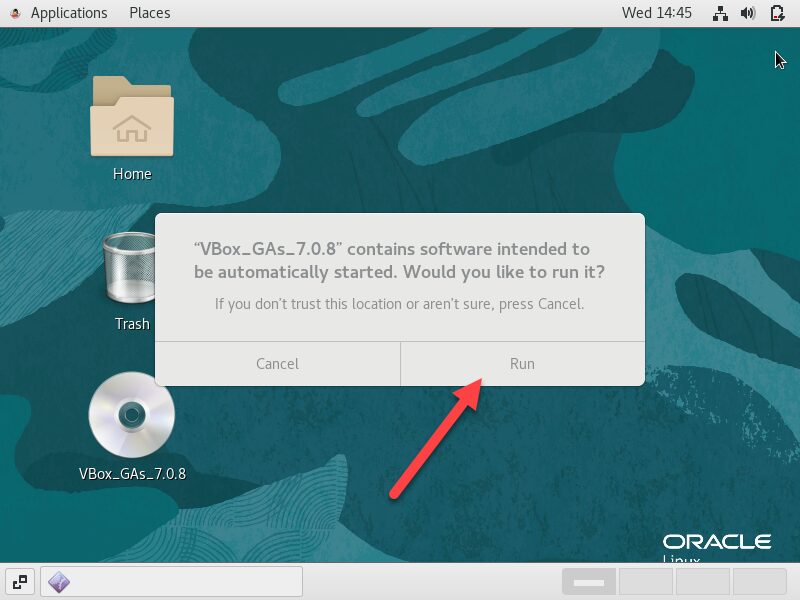

Click Run

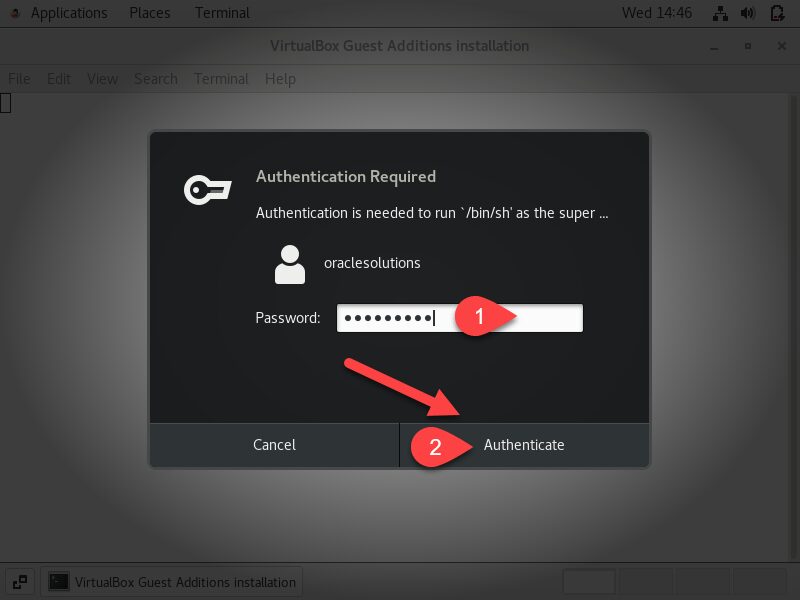

Enter The Password of the user to continue the Installation Process

Click Enter to Close the Window.

Reboot After the installation.

Configure Another Virtual Hard Disk Process

As a reminder, during the Linux configuration on Virtual Box, we included two virtual hard disks. However, during the Linux installation process, we only configured one of the virtual hard disks. Now, it is time to configure the remaining virtual hard disk.

To display the available disks, open the terminal as the root user and enter the command “fdisk -l”. This will provide a list of the disks that are currently accessible.



Step 1: Format Disk To Create File System

[root@test1 ~]# fdisk /dev/sdb

Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.

Be careful before using the write command.

Device does not contain a recognized partition table

Building a new DOS disklabel with disk identifier 0xdc621a1b.

Command (m for help): c

DOS Compatibility flag is set (DEPRECATED!)

Command (m for help): u

Changing display/entry units to cylinders (DEPRECATED!).

Command (m for help): p

Disk /dev/sdb: 322.1 GB, 322122547200 bytes, 629145600 sectors

255 heads, 63 sectors/track, 39162 cylinders

Units = cylinders of 16065 * 512 = 8225280 bytes

Sector size (logical/physical): 512 bytes / 512 bytes

I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk label type: dos

Disk identifier: 0xdc621a1b

   Device Boot      Start         End      Blocks   Id  System

Command (m for help): n

Partition type:

   p   primary (0 primary, 0 extended, 4 free)

   e   extended

Select (default p): p

Partition number (1-4, default 1):

First cylinder (1-39162, default 1): 1

Last cylinder, +cylinders or +size{K,M,G} (1-39162, default 39162):

Using default value 39162

Partition 1 of type Linux and of size 300 GiB is set

Command (m for help): w

The partition table has been altered!

Calling ioctl() to re-read partition table.

Syncing disks.

Step 2. Create and Mount File System

[root@test1 ~]# /sbin/mkfs.ext4 -L /u01 /dev/sdb1

mke2fs 1.42.9 (28-Dec-2013)

Filesystem label=/u01

OS type: Linux

Block size=4096 (log=2)

Fragment size=4096 (log=2)

Stride=0 blocks, Stripe width=0 blocks

19660800 inodes, 78642183 blocks

3932109 blocks (5.00%) reserved for the super user

First data block=0

Maximum filesystem blocks=2227175424

2400 block groups

32768 blocks per group, 32768 fragments per group

8192 inodes per group

Superblock backups stored on blocks:

               32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,

               4096000, 7962624, 11239424, 20480000, 23887872, 71663616



Allocating group tables: done

Writing inode tables: done

Creating journal (32768 blocks): done

Writing superblocks and filesystem accounting information: done

[root@test1 ~]# mkdir /u01

[root@test1 ~]# mount /dev/sdb1 /u01

Now, edit the fstab file to automatically mount this partition on REBOOT.

[root@test1 ~]# vi /etc/fstab

/dev/sdb1               /u01                    ext4    defaults        1 2



Following a successful installation of Linux on Virtual Box, we can now proceed with configuring the RPM packages on the Linux system based on the specific software you intend to install.

For Configuration of Linux RPM on 7.9 for Oracle E-Business Suite 12.2, click the Below link

OEL Configuration for Oracle Apps R12.2.12
