Oracle Blocking Sessions – Find & Resolve

• Introduction – Oracle Database Blocking Sessions

In Oracle Database, blocking occurs when one session holds a lock on a resource (typically a row or table) and another session attempts to access the same resource, causing the second session to wait. While this is a normal part of Oracle’s concurrency control mechanism, prolonged blocking can lead to performance degradation, application timeouts, and in severe cases, a deadlock.

This guide provides a step-by-step approach to creating, identifying, diagnosing, and resolving blocking sessions in Oracle Database, along with the theoretical concepts behind each step.

What is a Lock?

A lock is a mechanism used by Oracle Database to prevent multiple sessions from simultaneously modifying the same data. Oracle automatically acquires locks when a transaction performs DML operations (INSERT, UPDATE, DELETE).

Types of Locks Relevant to Blocking

What is Blocking?

Blocking occurs when:

• Session A acquires a lock on a row and does not commit or rollback.

• Session B attempts to update the same row.

• Session B enters a wait state with the event enq: TX - row lock contention.

What is a Deadlock?

A deadlock occurs when two or more sessions are waiting for each other to release locks, creating a circular dependency. Oracle automatically detects deadlocks and resolves them by rolling back one of the sessions with the error ORA-00060: deadlock detected while waiting for resource.

Key Dynamic Performance Views

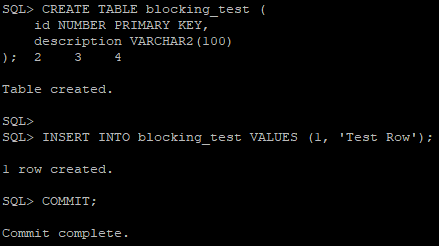

CREATE TABLE blocking_test (id NUMBER PRIMARY KEY, description VARCHAR2(100));

INSERT INTO blocking_test VALUES (1, 'Test Row');

COMMIT;

SELECT * FROM blocking_test;

UPDATE blocking_test SET description = 'Locked by Session 1' WHERE id = 1;

Step 3 – Create Blocking from Session 2

Purpose

To demonstrate how a second session is blocked when attempting to modify a locked row.

SQL Command (Run in a New Session)

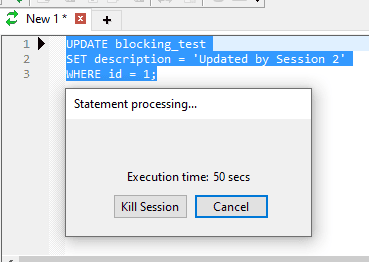

UPDATE blocking_test SET description = 'Updated by Session 2' WHERE id = 1;

Expected Behavior :

• The command will not complete immediately.

• Session 2 will enter a wait state.

• The wait event will be enq: TX - row lock contention.

Explanation :

When Session 2 attempts the UPDATE:

1. Oracle checks whether the row is locked.

2. It finds that Session 1 holds a TX lock on the row.

3. Session 2 is placed in a wait queue for that lock.

4. The wait event enq: TX - row lock contention is recorded in V$SESSION.

Important: Session 2 is not terminated—it remains in a waiting state until:

• Session 1 commits or rolls back (lock released), or

• Session 2 is manually cancelled, or

• A deadlock occurs (Oracle resolves it automatically).

Step 4 – Identify the Blocking Session

Purpose

To identify which session is blocking and which session is blocked.

SQL Command (Run in a Third Session)

SELECT sid, serial#, username, status, event, blocking_session, seconds_in_wait FROM v$session WHERE blocking_session IS NOT NULL;

Interpretation :

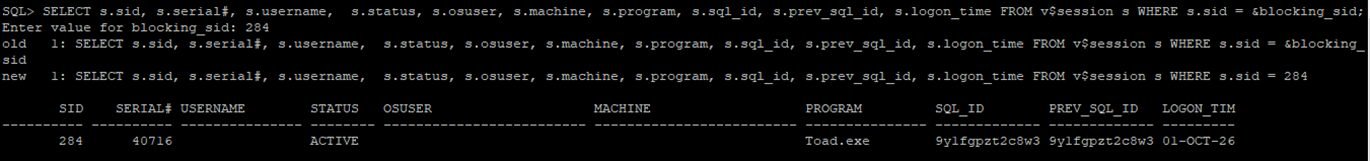

SELECT s.sid, s.serial#, s.username, s.status, s.osuser, s.machine, s.program, s.sql_id, s.prev_sql_id, s.logon_time FROM v$session s WHERE s.sid = &blocking_sid;

Expected Result :

5b – Blocking Session SQL Text

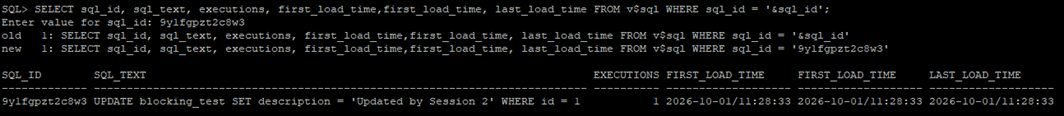

SELECT sql_id, sql_text, executions, first_load_time, last_load_time FROM v$sql WHERE sql_id = '&sql_id';

Expected Result :

5c – Blocked Session Details

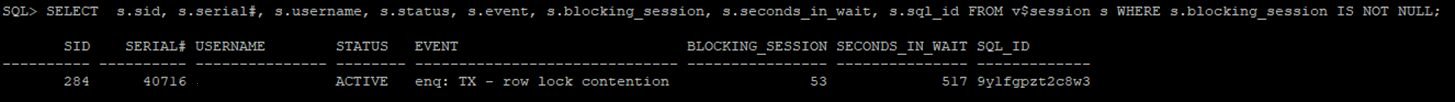

SELECT s.sid, s.serial#, s.username, s.status, s.event, s.blocking_session, s.seconds_in_wait, s.sql_id FROM v$session s WHERE s.blocking_session IS NOT NULL;

5d — Blocked Session SQL Text

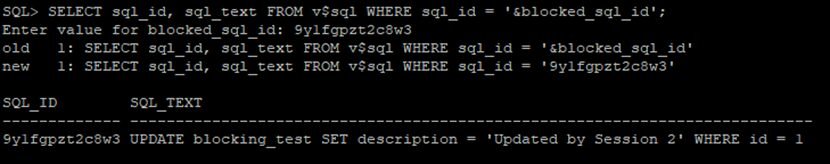

SELECT sql_id, sql_text FROM v$sql WHERE sql_id = '&blocked_sql_id';

Expected Result :

Step 6 – Identify the Blocking Tree

Purpose

To visualize multiple levels of blocking when more than two sessions are involved.

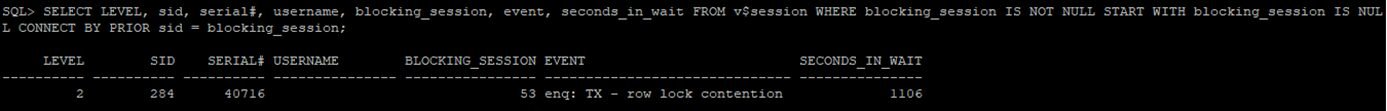

SELECT LEVEL, sid, serial#, username, blocking_session, event, seconds_in_wait FROM v$session WHERE blocking_session IS NOT NULL
START WITH blocking_session IS NULL CONNECT BY PRIOR sid = blocking_session;

Explanation :

This hierarchical query uses Oracle’s CONNECT BY clause to build a tree:

• Root = session with blocking_session IS NULL (the ultimate blocker)

• Children = sessions blocked by the root

• Grandchildren = sessions blocked by children, and so on

This is extremely useful in production environments where a single blocking session can cause a cascading effect, blocking dozens of other sessions.

Step 7 – Resolve the Blocking

Option A – Commit or Rollback in the Blocking Session (Recommended)

In Session 1:

COMMIT;
-- or
ROLLBACK;

Option B – Kill the Blocking Session

ALTER SYSTEM KILL SESSION '284,40716' IMMEDIATE;

Option C – Cancel the Blocked Session

In Session 2, press Ctrl+C or use the cancel button in Toad.

Explanation :

Best Practice: Always prefer COMMIT or ROLLBACK over KILL SESSION, as killing a session can leave the database in an inconsistent state and may require instance recovery.

Note on KILL SESSION IMMEDIATE: The IMMEDIATE clause instructs Oracle to terminate the session without waiting for the current transaction to complete. Without IMMEDIATE, Oracle waits for the transaction to finish.

Step 8 – Verification

Purpose

To confirm that the blocking has been resolved.

SELECT sid, serial#, username, status, event, blocking_session, seconds_in_wait FROM v$session WHERE blocking_session IS NOT NULL;

Expected Result :

No rows returned (or only legitimate waits unrelated to the test).

Explanation :

Once the blocking session commits, rolls back, or is killed, the lock is released, and the blocked session automatically resumes execution. The BLOCKING_SESSION column becomes NULL for the previously blocked session.

Conclusion

Blocking is an inherent part of Oracle’s concurrency control mechanism. While short-lived blocking is normal and expected, prolonged blocking can severely impact database performance and application availability.

By understanding the theoretical foundations and following the systematic troubleshooting steps outlined in this guide, DBAs can efficiently:

• Identify blocking sessions using V$SESSION and V$SQL

• Diagnose the root cause using blocking trees and SQL text

• Resolve blocking through commits, rollbacks, or session termination

• Prevent future occurrences through best practices

The screenshots captured during this exercise serve as valuable evidence and reference material for both training and incident documentation.

Appendix – Quick Reference Queries

Find Blocking Sessions :

SELECT sid, serial#, username, blocking_session, event, seconds_in_wait FROM v$session WHERE blocking_session IS NOT NULL;

Find Blocking Tree :

SELECT LEVEL, sid, serial#, username, blocking_session, event FROM v$session WHERE blocking_session IS NOT NULL
START WITH blocking_session IS NULL CONNECT BY PRIOR sid = blocking_session;

Find SQL of a Session :

SELECT sql_id, sql_text FROM v$sql WHERE sql_id = (SELECT sql_id FROM v$session WHERE sid = &sid);

Kill a Session :

ALTER SYSTEM KILL SESSION '&sid,&serial#' IMMEDIATE;
